Shuttering Plywood
Prabal_Scalar_Product_logo

Built for the pressure of real sites, where time, load, and repeat cycles decide the outcome. Prabal Scalar is our Economy Shuttering Plywood (IS 4990), made to deliver consistent performance through 15+ Reuse Cycles.

With a tough film-faced surface, strong bonding, and a stable build, Scalar helps formwork stay tight, edges hold, and pours come out cleaner. So you spend less time fixing, replacing, and re-aligning on site.

Prabal Scalar – Built to repeat. Built to deliver.

12mm, 18mm
8' x 4'
FlashCut_Prabal_Ico_AccArtboard 39
30Kg, 34Kg

Built for the pressure of real sites, where time, load, and repeat cycles decide the outcome. Prabal Scalar is our Economy Shuttering Plywood (IS 4990), made to deliver consistent performance through 15+ Reuse Cycles.

With a tough film-faced surface, strong bonding, and a stable build, Scalar helps formwork stay tight, edges hold, and pours come out cleaner. So you spend less time fixing, replacing, and re-aligning on site.

Prabal Scalar – Built to repeat. Built to deliver.

12mm, 18mm
8' x 4'
FlashCut_Prabal_Ico_AccArtboard 39
30Kg, 34Kg

Formaldehyde Emission

NA
NA

Preservative Treatment

Advanced Copper Chrome (VPT)
Anti-borer, Anti-termite, Anti-fungal protection

Product Warranty

15+ Reuse Cycles
Designed to deliver 15+ dependable re-use cycles in standard shuttering conditions with proper handling and maintenance

Product Price Category

Economy
Engineered for demanding construction applications where strength and repeat performance matter.

Standard Product Features

Prabal_Feature_EdgeSeal_G
Edge Seal Pro™
Superior edge sealing helps reduce water absorption from the sides, improving panel life and stability on-site.
Prabal_Feature_XtermPlus_G
XTerm Plus Tech™
All core material undergoes Deep Cell Chemical Impregnation (VPT) for long-lasting protection.
Prabal_Feature_EdgeSeal_G
Edge Seal Pro™
Superior edge sealing helps reduce water absorption from the sides, improving panel life and stability on-site.
Prabal_Feature_XtermPlus_G
XTerm Plus Tech™
All core material undergoes Deep Cell Chemical Impregnation (VPT) for long-lasting protection.

Super Feature

FlashCut_Prabal_Feature_ReframeBuilder25
Reframe Builder Pro™ – ReFrame BuilderPro is engineered for high-performance shuttering with 15+ reuse cycles, built to hold form, resist on-site wear, and deliver a more consistent concrete finish across repeated pours, project after project.
FlashCut_Prabal_Feature_ReframeBuilder25

Super
Feature

Reframe Builder Pro™ – ReFrame BuilderPro is engineered for high-performance shuttering with 15+ reuse cycles, built to hold form, resist on-site wear, and deliver a more consistent concrete finish across repeated pours, project after project.

Ideal Applications

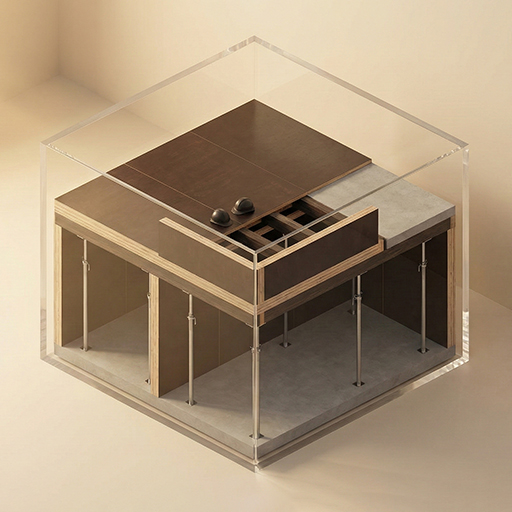

Slab + Beam Formwork Bay

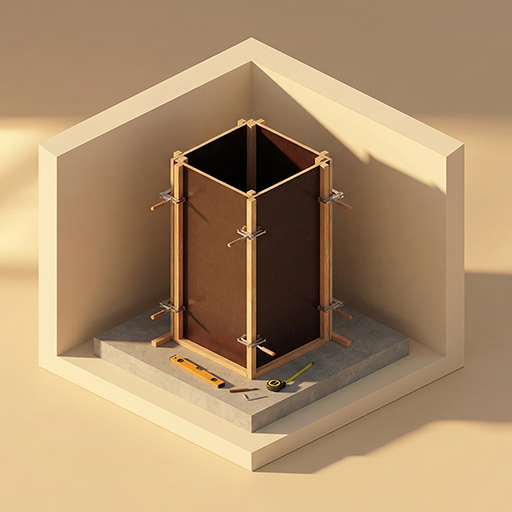

Column Shuttering

Column Shuttering

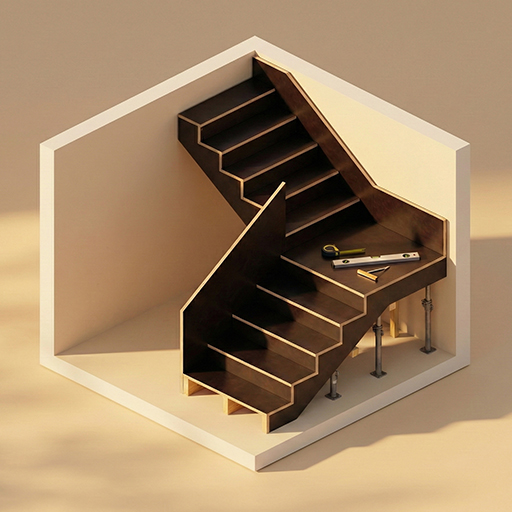

Staircase Shuttering

Staircase Shuttering

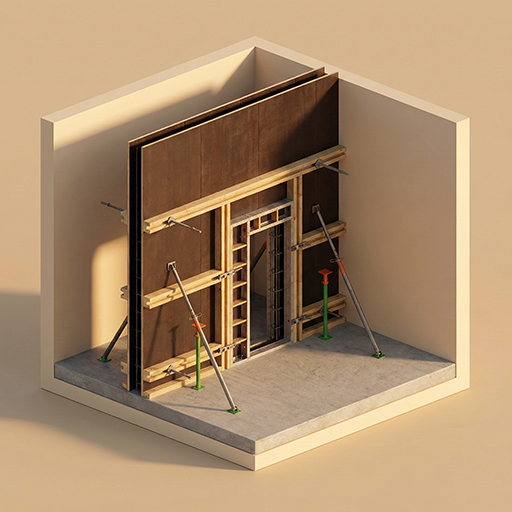

Shear Wall / Lift Core Wall

Shear Wall / Lift Core Wall

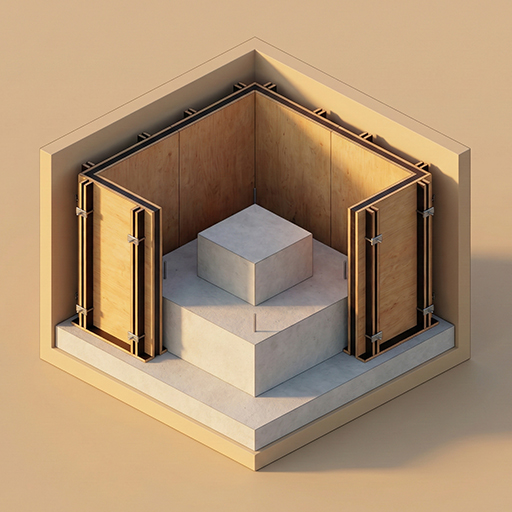

Footing + Pedestal Formwork

Footing + Pedestal Formwork

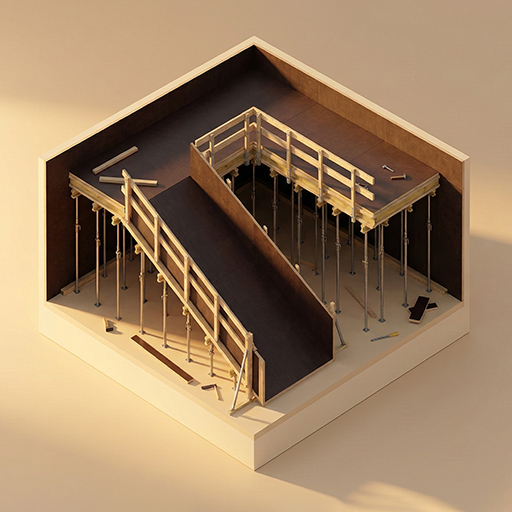

Ramp / Inclined Slab Formwork

Ramp / Inclined Slab Formwork

Know Your

Scalar

Industry Standard

0 to +6mm tolerance

Scalar

2443mm max

Industry Standard

0 to +3mm tolerance

Scalar

1221mm max

Industry Standard

±5%

Scalar

±2% (High Precision)

Industry Standard

≤ 2mm/1000 mm

Scalar

1mm/1000 mm

Industry Standard

≤ 2mm/1000 mm

Scalar

2mm/1000 mm

Upgrade Quotient

Upgrade from regular shuttering ply to Prabal Scalar to get 15+ repeat-use cycles, tighter formwork, and cleaner concrete finishes, reducing frequent panel replacement and site rework across slabs, columns, and walls.
Layer Bond Validation
Glue-line bonding strength and boiling-water endurance to ensure stable inter-layer adhesion.
Parameters
Industry
Scalar
Glue Shear Strength (Dry)
1100 N
> 1250 N
Resistance to Water Test
--
No delamination
GSS Microbial
800 N
> 900 N
Idea-Ico
WHAT THIS MEANS:
Strong glue-line bonding that withstands prolonged moisture exposure and microbial stress without delamination.
Tensile Strength Validation
Tensile resistance along and across grain directions to confirm internal fibre strength.
Parameters
Industry
Scalar
Tensile Strength (Along)
28 N/mm²
> 35 N/mm²
Tensile Strength (Across)
≥ 26 N/mm²
≥ 30 N/mm²
Combined Tensile Strength
≥ 60 N/mm²
≥ 65 N/mm²
Idea-Ico
WHAT THIS MEANS:
Higher tensile resistance improves panel stability and reduces the risk of internal fibre separation under stress.
Structural Bending Strength (Dry)
Dry bending strength and stiffness to ensure reliable structural performance under load.
Parameters
Industry
Scalar
MOR (Along Grain)
≥ 38 N/mm²
≥ 48 N/mm²
MOR (Across Grain)
≥ 31 N/mm²
≥ 41 N/mm²
MOE (Along Grain)
≥ 5700 N/mm²
≥ 6800 N/mm²
MOE (Across Grain)
≥ 4100 N/mm²
≥ 4900 N/mm²
Idea-Ico
WHAT THIS MEANS:
Higher bending strength and stiffness support improved load resistance and reduced panel deflection.
Wet Strength Validation
Bending strength after water exposure to confirm structural stability in all environments.
Parameters
Industry
Scalar
MOR Wet (Along)
≥ 19 N/mm²
≥ 25 N/mm²
MOR Wet (Across)
≥ 15 N/mm²
≥ 20 N/mm²
MOE Wet (Along)
≥ 2900 N/mm²
≥ 3500 N/mm²
MOE Wet (Across)
≥ 2100 N/mm²
≥ 2500 N/mm²
Idea-Ico
WHAT THIS MEANS:
Maintains structural strength even after water exposure, supporting reliable performance in humid or wet exteriors.
Preservative Retention Validation
Preservative absorption to confirm protective chemical penetration within the panel structure.
Parameters
Industry
Scalar
Retention of Preservative
12 kg/m³
> 12.2 kg/m³
Idea-Ico
WHAT THIS MEANS:
Adequate preservative retention helps protect the panel against biological deterioration over time.
Adhesion Performance Confirmation
Adhesion testing procedures under IS 1734 standards to confirm manufacturing consistency.
Parameters
Industry
Scalar
Adhesion of Plies
--
Excellent
Idea-Ico
WHAT THIS MEANS:
Consistent manufacturing adhesion ensures reliable bonding between layers throughout the panel.
